Descrizione del prodotto

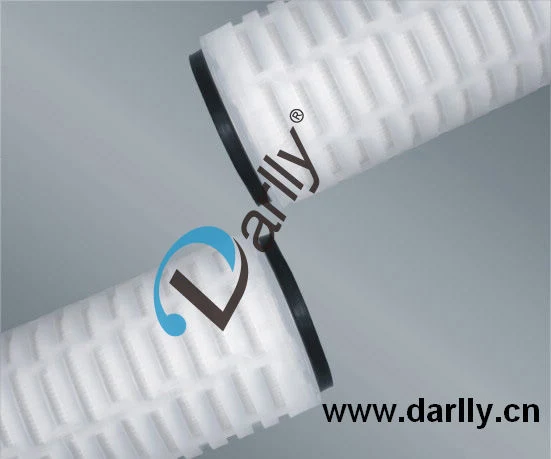

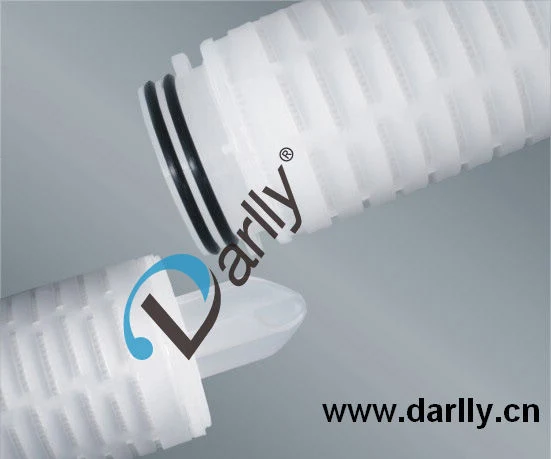

PES pleated micro filter cartridge
1.low pressure drop
2.Full range of removal ratings
3.PES inport from Germany
DLM PES pleated membrane filter (SGS test with FDA standard)
1.Flushed with EUI pure water
2.100% integrity test
3.Bubble point test
The DLM series-PP Pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications.They are constructed of pleated melt blown filter media tahe provides removal of particals from 0.1 to 50um.The high surface area ensures long service life and low initial pressure drops.All cartridge hardware components are made from high purity polypropylene materials for use in critical process application,
Application:
Pharmaceutics
Food and beverage
Oil industry
Semiconductor
Chemical industry
Features:
- Excellent performance of chemical compatibility
-- Hydrophillc membrane with high flow
-- Non-fiber releasing according to pharmaceutics and food industry requirements
-- Experiencing 100% integrity tested
-- Flushed with ultrapure water
-- FDA compliance material
Outside Diameter: | 2.7''(69mm) |
Length: | 9.75'',10'',20'',30'',40'' |
Filter media: | PP |
Support Layer/Cage/Core/ End caps : | Polypropylene (PP) |
Seal Material : | Silicone,EPDM,NBR,Vilton,Teflon,E-FKM |
Removal Rating: | 0.1um,0.22um,0.45um,0.5um,0.8um,1.2um |
Maximum Operating Temperature | 80°C |
Maximum Differential Pressure : | 4.0Bar@25°C |
Maximum Differential Pressure(Reverse Direction): | 2.0Bar,25°C |
Maximum temperature sterilization : | 5times, 20minutes cycles at 120°C |
Outside Diameter: | 2.7''(69mm) |
Length: | 9.75'',10'',20'',30'',40'' |
Filter media: | PP |
Support Layer/Cage/Core/ End caps : | Polypropylene (PP) |
Seal Material : | Silicone,EPDM,NBR,Vilton,Teflon,E-FKM |
Removal Rating: | 0.1um,0.22um,0.45um,0.5um,0.8um,1.2um |
Maximum Operating Temperature | 8 0°C |
Maximum Differential Pressure : | 4.0Bar@25°C |
Maximum Differential Pressure(Reverse Direction): | 2.0Bar,25°C |
Maximum temperature sterilization : | 5times, 20minutes cycles at 120°C |
